TY20 6-pin electrical power connector, waterproof, screw-wring, screw terminal connection, free-solder, bulkhead, easy for assembly cable. No Soldering. Feed the wires all the way into the screw terminals and tighten securely Rated Voltage/Current AC 250V / 5A, Contact resistance 5mΩ, Insulation resistance 2000mΩ. Suitable wire outer diameter range 6-12mm, Wire gauge 0.75mm² or 18AWG, Contact Diameter Φ1mm Male cable plug and rear panel mount female receptacle socket with watertight cap. Panel cutout 20.5mm, thread size M20 x 1.5 Features Waterproof IP68, threaded coupling and solid locking, quick disconnect and connect. The contact pins of the connector are pure copper gold-plated, which has strong conductivity, corrosion resistance and oxidation resistance Protected against solids and liquids, provide a secure and reliable power connection in the harsh environment Features:
The connector can provide a safe and reliable connection in the harsh environment .
TY20 series connector is ideal for watertight power equipment applications, outdoor electric tools or appliances, camper van truck power, communications, marine equipment, under water equipment, outdoor led lighting, outdoor LED panels, solar energy system, outdoor security cameras, transformer, control box.

Specifications:
TY20:
Model: 2-7 Pin
IP Rating: IP68
Panel Cutout Diameter: 19.4-20.5mm
Cable Outer Diameter Range:6-11.5mm
Coupling Type: Threaded Coupling
Shell material: Thermoplastic Nylon66, Fire Resistance: V-0
Insert Material: Thermoplastic PA66, max temperature 200℃
Contact Material: Pure copper plated gold
Wiring way: Free-Solder / Screw Crimp
Mating Cycle: >500 times
Temperature Range: -25~+85℃

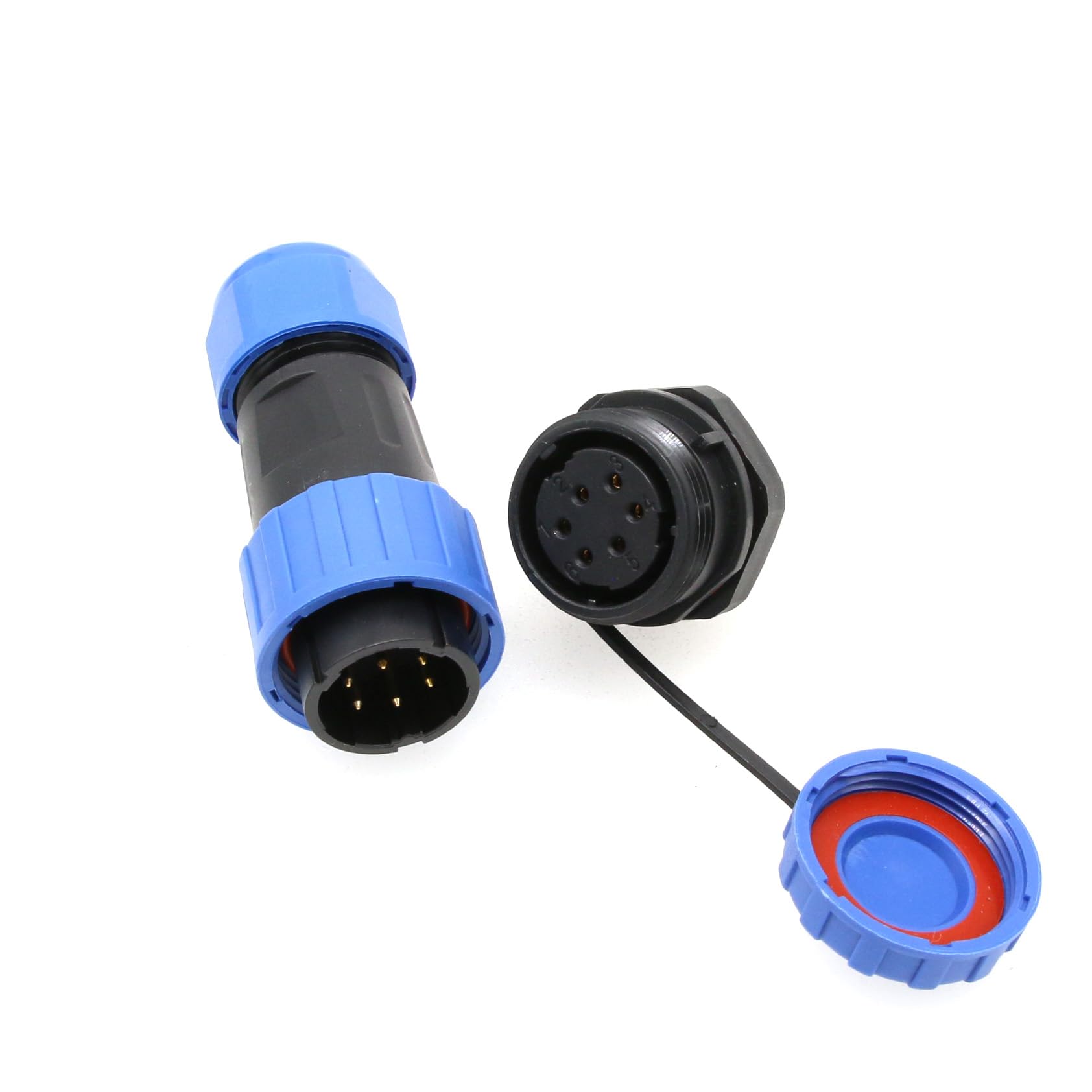

Package Includes:
1 x Plug with male contact
1 x Panel rear-mount socket with female contact
1 x Waterproof / Dustproof Cap
