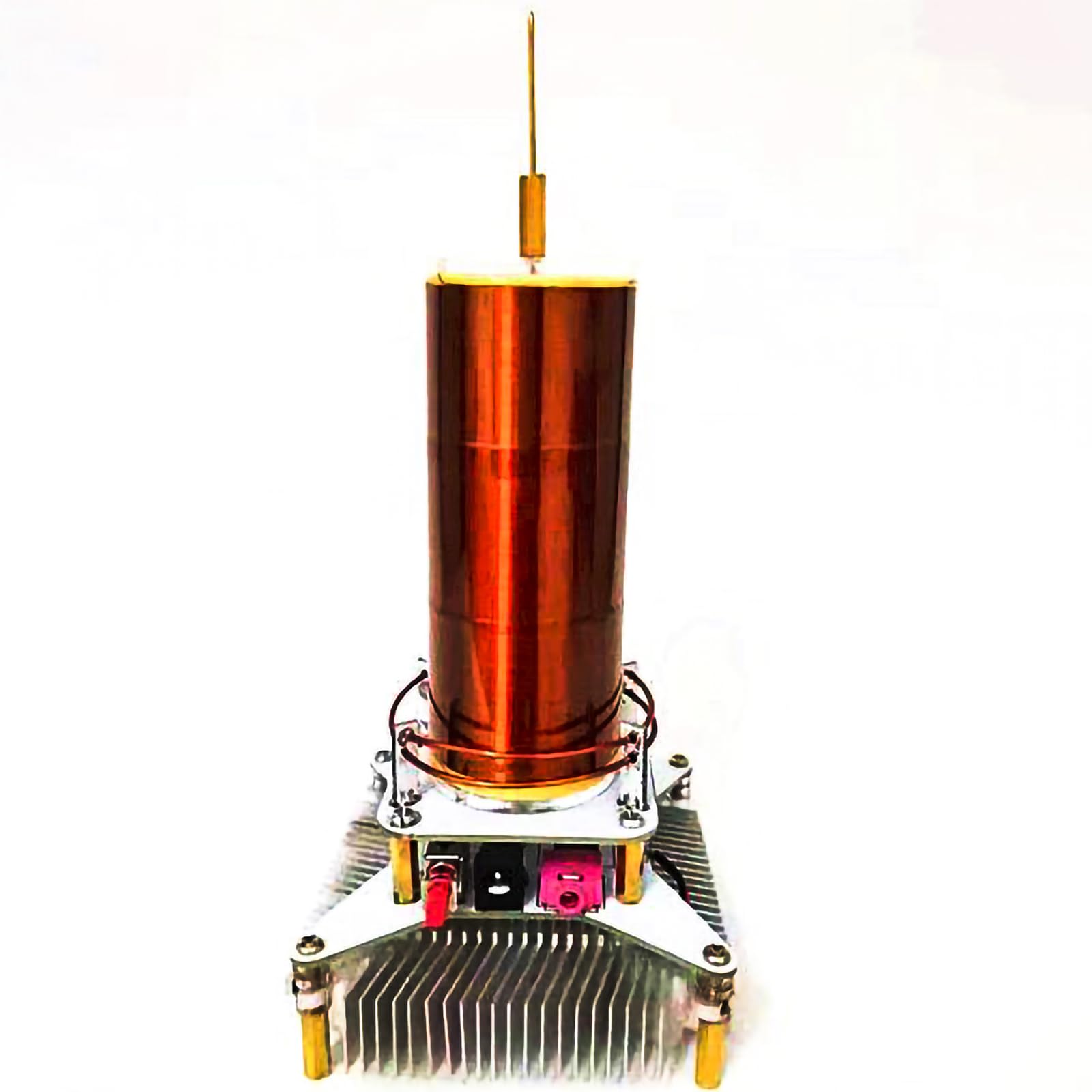

Original Structure: The Tesla coil of this music model is partially detachable, and different accessories can be replaced on the top to achieve the different functions you need. The CPU heat sink serves as the base, with strong heat dissipation capability, ensuring that the music Tesla coil can work for a long time. Exquisite Craftsmanship: Tesla music coils have strict production processes, and the secondary coils are coated with resin, which is practical and beautiful. It uses high-quality PCB boards and carefully selected power tubes to continuously improve product technology and quality in every detail. Excellent sound quality playback effect. Playing music is the highlight of this product. Many component parameter optimization experiments have been conducted in circuit development to ensure excellent results. The magical Tesla coil generates high-temperature and high-pressure plasma, which can ignite and wirelessly transmit electricity. It can light up LEDs, neon tubes, energy-saving lamps, etc. from a distance, and can connect MP3, computer, and mobile phone audio through an audio cable, allowing the arc to sing and play music while watching small arcs that can rotate, which is very interesting. At the same time, it is also the perfect gift in the hearts of technology enthusiasts. Product Size: Length 3.35" x width 3.35" x height 7.87". The finished product weight is about 0.419lb. Description：
Power Supply Input Voltage: 24V DC.
Power Supply Current: 2A-3A.
Power Supply Interface: Positive and negative within 5.5-2.1.
Audio Interface: 3.5 audio port.
The finished product weight is about 0.419lb.
Note:The computer audio interface is 3.5, the audio cable used is 3.5 to 3.5 audio cable, the mobile phone and MP3 interface are different, please use the corresponding audio cable to 3.5.If you use other voltage or current that does not meet the requirements, the power supply or positive and negative Extremely reversed, there will be devices burned, and the losses caused by the buyer will be at the buyer's own risk.
Some buyers think that the power supply is 24V, then the input 12V device will not be damaged. This understanding is wrong. The circuit eventually constitutes the oscillation circuit.If the voltage and current are not enough, the circuit will not oscillate, which will cause the triode to conduct directly to the ground, and the triode will burn out.

About the Safety Instructions:
1. The ionic wind will have a high heat, so when you touch it by hand, it is like touching a candle!Not recommended to touch.
3. Please note that when using the power, first turn on the 220V to 24V switching power supply, after a delay of 1-2 seconds, then turn on the Tesla power switch after the power supply voltage is stable. When the power is off, first turn off the Tesla switch, then turn off the 220V to 24V switching power supply. This is because the switching power supply generally has a slow start function, that is, the output voltage rises slowly after the power is turned on, and if the Tesla is turned on before the voltage rises to 15V, it will not start due to insufficient starting voltage, resulting in The triode is turned on to ground to burn the components.
4.Not include the Power Supply!!!
